PDF Invoices

Official documentation here

A plugin for generating customizable PDF invoices for orders. Supports incremental invoice numbering, credit invoices, and customizable Handlebars templates.

This is a paid plugin. For production use, please purchase a license at https://vendure.io/marketplace.

Migration from V3.x to V4.0.0

In v4 the field invoice.isCreditInvoice was changed from a getter to a physical database column. To populate the column you need to:

1. Back up your database!
2. Install the invoices plugin v4.x and generate + run a database migration. This introduced the new database field isCreditInvoice where all values are 'false'.
3. Run the query UPDATE invoice SET isCreditInvoice = 1 WHERE orderTotals LIKE '%total":-%'; to set the value to 'true' for invoices that have a negative total.
4. :warning: The plugin now uses Puppeteer, so your Docker image might need additional dependencies installed. See Getting Started below!

Getting started

1. Install the plugin with yarn add @vendure-hub/pinelab-invoice-plugin
2. Add the following config to your vendure-config.ts:

2. Run a migration, to add the Invoice and InvoiceConfig entities to the database.
3. Start Vendure and login to the admin dashboard
4. Make sure you have the permission AllowInvoicesPermission
5. Go to Sales > Invoices.
6. Unfold the Settings accordion.
7. Check the checkbox to Enable invoice generation for the current channel on order placement.

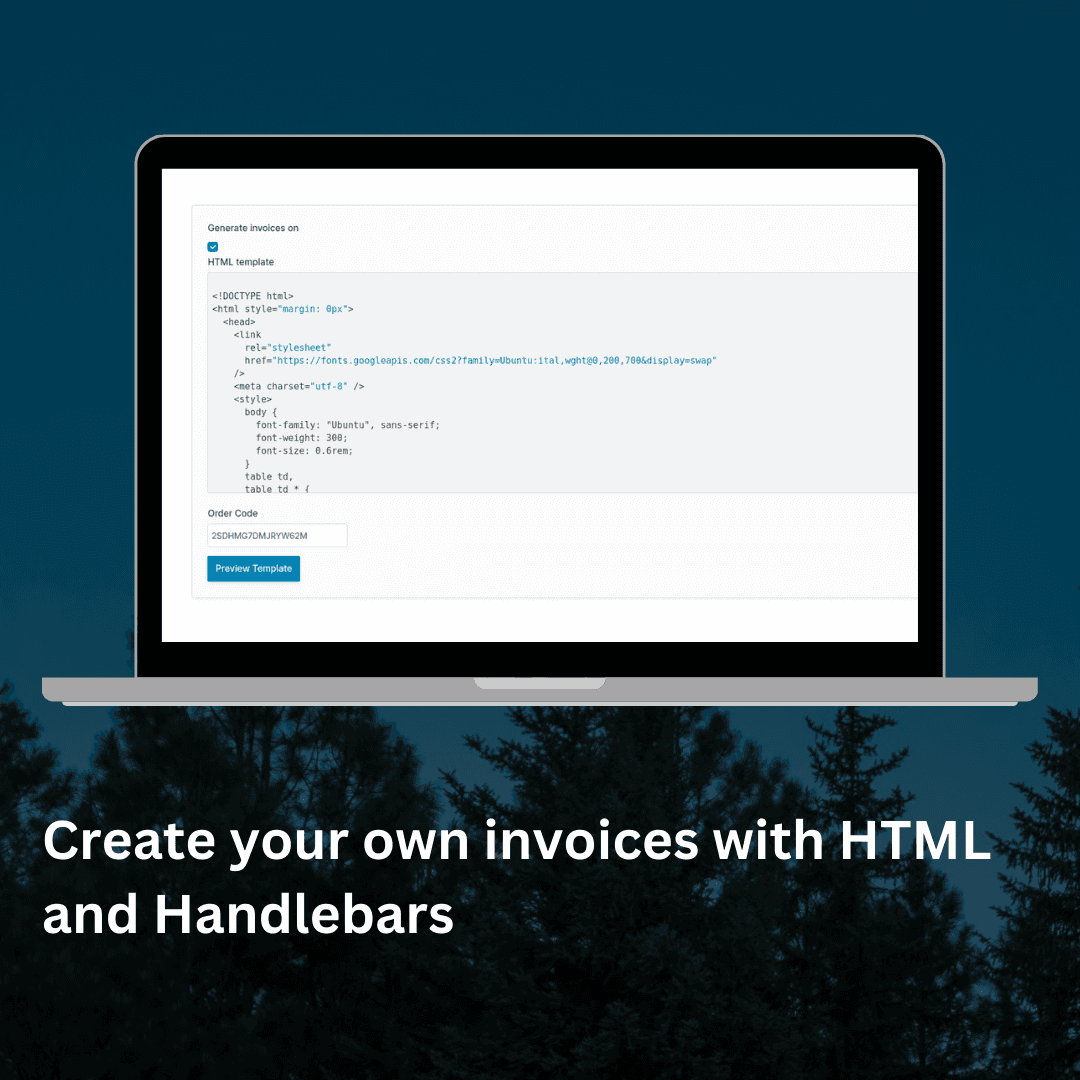

8. A default HTML template is set for you. Click the Preview button to view a sample PDF invoice.

Docker

To make Puppeteer work on Docker, you need some additional steps in your Dockerfile. This is the Dockerfile we use ourselves:

Adding invoices to your order-confirmation email

Add the following link to your email template:

https://<your server>/invoices/e2e-default-channel/C7YH7WME4LTQNFRZ?email=hayden.zieme12@hotmail.com.

When the customer clicks the link, the server will check if the ordercode, channelCode and customer emailaddress match with the requested order. If so, it will return the invoice.

This link will always return the first invoice generated for an order. If invoices were recreated via the Admin UI, you can specify the invoice number in the url: ``

Recreating invoices and credit invoices

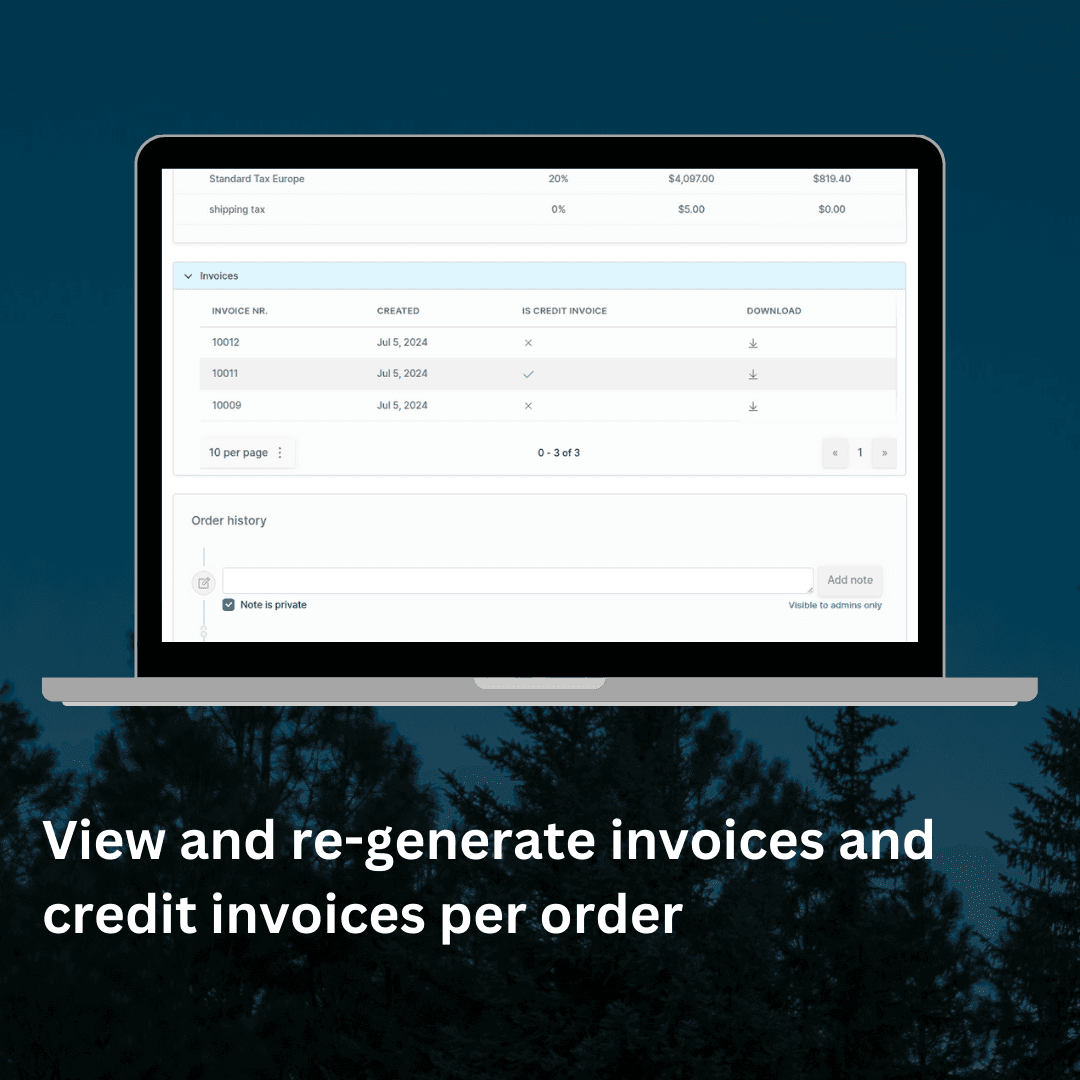

On the order detail page you can click the button recreate invoice to generate a new invoice based on the current state of the order. By default, this will first create a credit invoice, then a new invoice. A credit invoice basically voids the previous invoice before generating a new one.

To send emails when new invoices are created, you can listen for InvoiceCreatedEvents:

Credit invoices use the same template as regular invoices, so make sure to handle credit invoice data. Checkout the default template for an example on how to use it for credit invoices.

Credit invoices will receive additional data with the default loadDataFn(). This data is needed to create valid credit invoices:

To disable the credit invoice behaviour:

Increase invoice template DB storage

By default, the plugin uses TypeOrm's text to store the invoice template in the DB. This might not be enough, for example when you'd like to add base64 encoded images to your invoices. This will result in the error ER_DATA_TOO_LONG: Data too long for column 'templateString'. You can specify your DB engine with an env variable, and the plugin will resolve the correct column type:

Don't forget to run a DB migration: This will delete any data in the templateString column! Checkout https://orkhan.gitbook.io/typeorm/docs/entities for available databases and column types.

Google Storage strategy

This plugin also includes a strategy for storing invoices in Google Storage:

yarn add @google-cloud/storage

• Enable the service account IAM in Google Cloud Console
• Add role 'Service account token creator' to the Cloud Run service account

The strategy will use the projectId and credentials in from your environment, which is useful for Google Cloud Run or Cloud Functions.

However, if you want to run it locally or on a custom environment, you need to pass a keyFile to the plugin. This is needed to generate signedUrls, which are used to give customers temporary access to a file on Storage. More info about locally using signedUrls: https://github.com/googleapis/nodejs-storage/issues/360

Amazon S3 Storage strategy

This plugin also includes a strategy for storing invoices on Amazon S3.

yarn add aws-sdk

Custom file storage

Implement your own strategy for storing invoices by implementing one of these interfaces:

Remote storage strategy

RemoteStorageStrategy for storing PDF files on an external platform like Google Cloud or S3. It redirects the user to a public/authorized URL for the user to download the invoice PDF.

Local file storage

LocalFileStrategy streams the invoice through the Vendure service to the user.

Custom invoice numbering and custom template data

Implement a custom loadDataFn to pass custom data into your template or generate custom invoice numbers:

Make sure to return the data needed for credit invoices when shouldGenerateCreditInvoice is defined.

You can access this data in your HTML template using Handlebars.js:

Exporting to external accounting platforms

You can automatically export each created invoice to an accounting platform by including an accounting strategy in the plugin. See one of the examples below for more details.

Xero UK

This strategy exports each invoice to Xero (UK only). To get started:

1. Create an OAuth app by clicking 'New app' here: https://developer.xero.com/app/manage
2. This integration uses 'Custom connection', because we are syncing data from machine to machine. See this page for more details on app types.
3. Select the scopes accounting.transactions,accounting.contacts and accounting.settings.read.
4. Get your client ID and client secret, and pass them into the plugin like so:

5. npm install xero-node to install the Xero NodeJS client.

If you are getting { error: 'invalid_client' } during startup, you might have to recreate your Xero app on https://developer.xero.com/app/manage.

Custom accounting strategy

You can implement your own export strategy to export invoices to your custom accounting platform. Take a look at the included XeroUKExportStrategy as an example.

Migrating from V1 to V2 of this plugin

1. Always create a backup of your database
2. Install the plugin and generate a migration
3. In your migration file, add the function migrateInvoices(queryRunner) to the bottom of the up function in your migration file, like so

4. Run the migration.
